Smartgyro SG20 is the gyro stabilizer of choice for boats from 45-55 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.

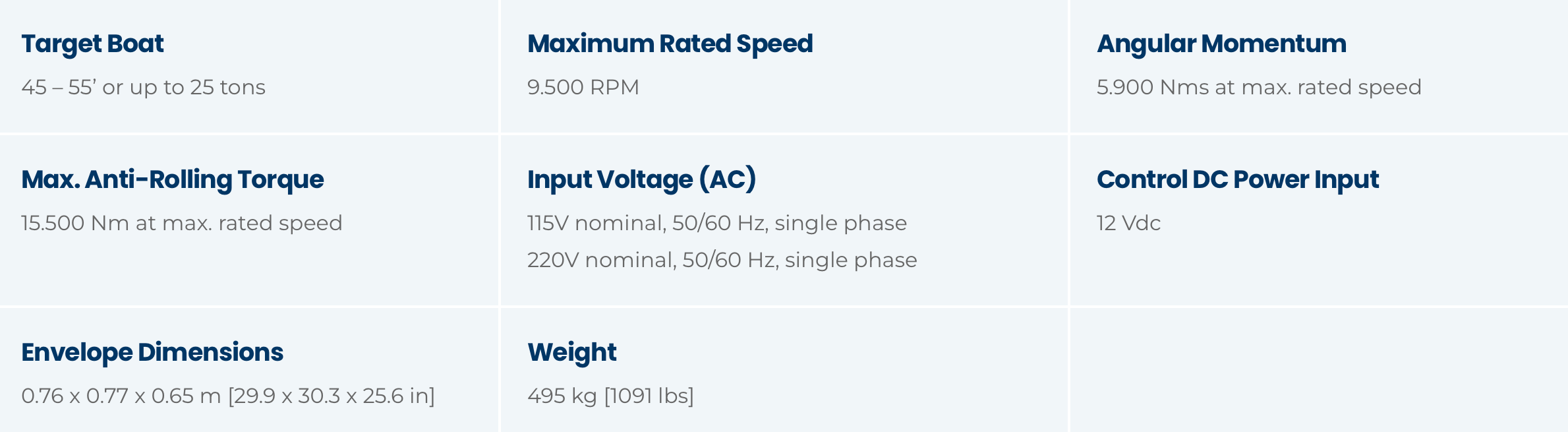

45 – 55’ or up to 25 tons
9.500 RPM
5.900 Nms at max. rated speed
15.500 Nm at max. rated speed
115V nominal, 50/60 Hz, single phase
220V nominal, 50/60 Hz, single phase
12 Vdc
0.76 x 0.77 x 0.65 m [29.9 x 30.3 x 25.6 in]
495 kg [1091 lbs]
